Industrial Long Distance 900 MHz Wireless Remote Control Switch Transmitter / Solid State Relay Receiver

WPC900-XL-SW1-RC1

$565.00
Unit price per

Shipping calculated at checkout.

Industrial Long Distance 900 MHz Wireless Remote Control Switch Transmitter / with Solid State Relay Receiver

Series: WPC900-XL-SSR8A

Features

Wireless Bridge Between Switch & Solid-State Control Relay
System Works with Any Dry-contact Switch
Up To 6 Miles (LOS) Transmit/Receive Distance
Weatherproof NEMA 4X Rated Enclosures
Use To Control Pump, Valve, Motor or Lighting
Optional Solar Power Kit for Transmitter
Receiver Unit Features Solid State Control Relays
License Free Point-to-point Radio Operation

Applications

Pump or Motor Control
Valve Activation
Gate or Lighting Control

Description

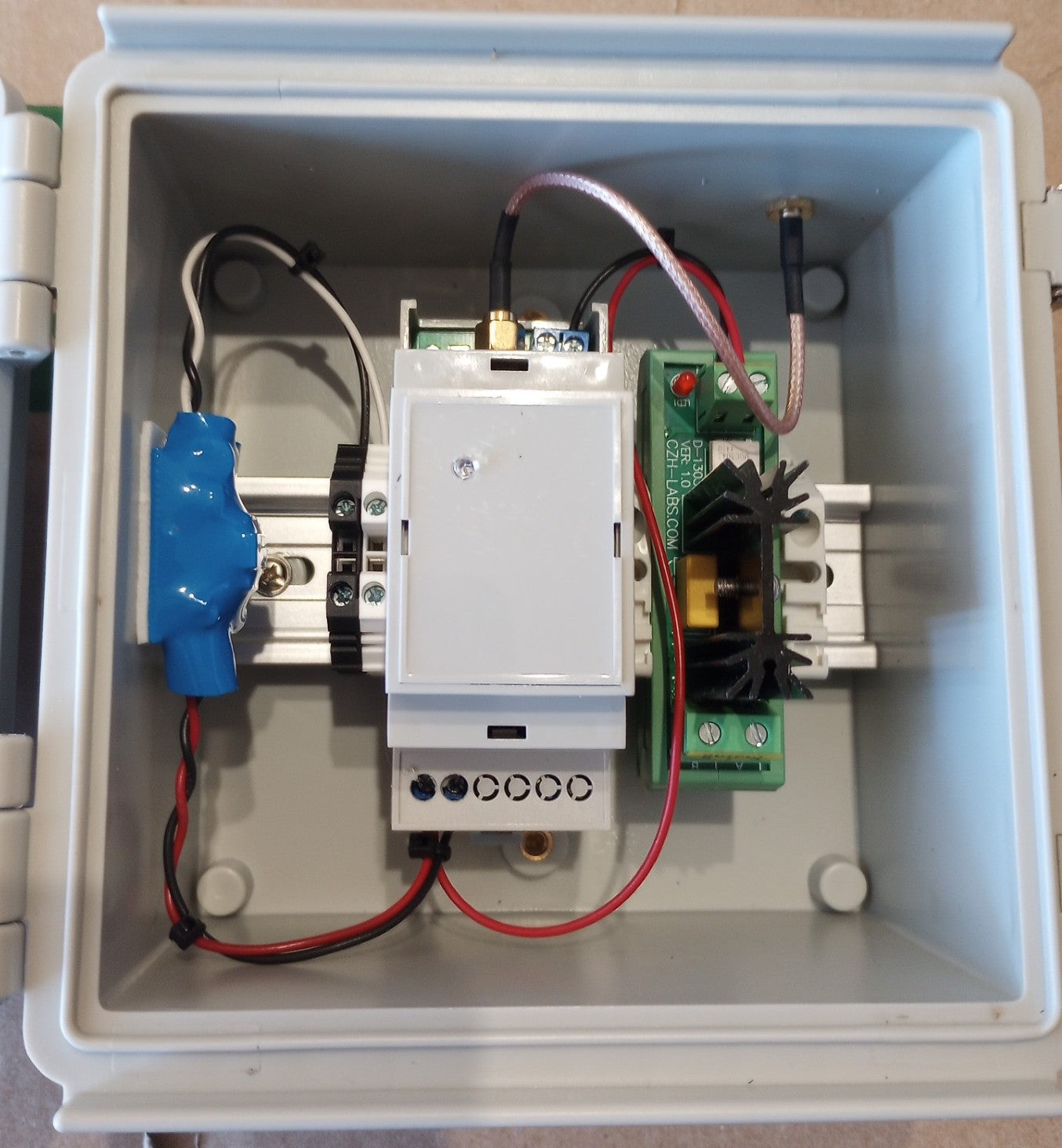

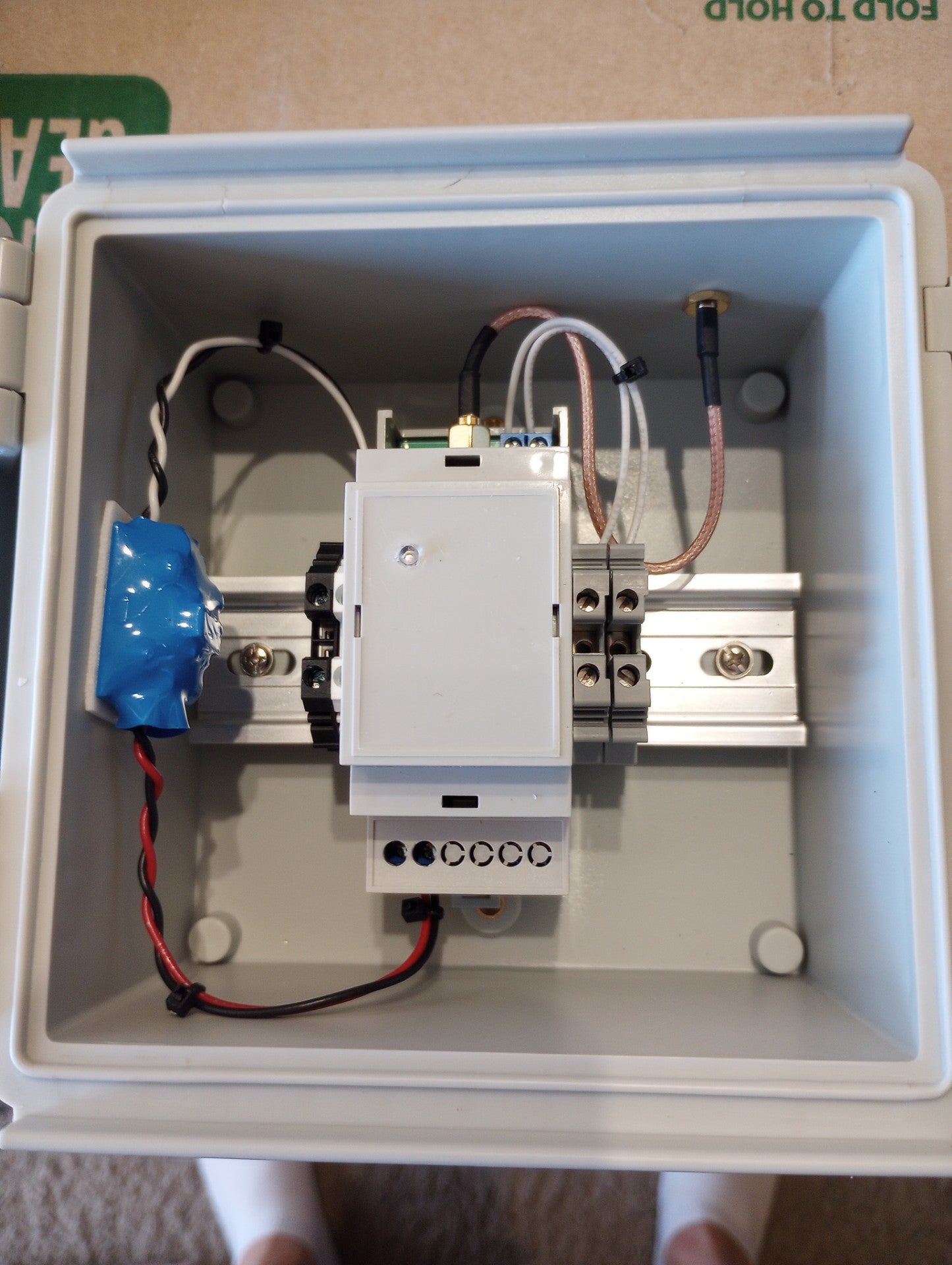

Series WPC900-XL Wireless Switch/Control System provides a wireless bridge between any type dry-contact switch and control relays. When a switch connected to the transmitting unit opens or closes signals are sent via a license free radio signal to dual receiver unis up to 6 miles (Line-of-site) away. When the control box receives the proper wireless signal from the transmitter a solid-state control relay (SSR) inside the panel is energized to operate a pump, valve or motor.

Each system is sold as a factory programmed matched set. That means there is no field settings needed to operate right out of the box. Transmitter and Receiver are powered by 120V AC.

NOTE: UNITS ARE FACTORY PROGRAMMED AS A MATCHED SET.

General Specifications
Radio Frequency: 900 MHz
Regulatory: FCC Part 15 (No license required)
Control Lines: 1, 2 ,3 or 4
Antenna Connection: RP-SMA
Antennas: 7dbi, Omni-directional (Included)
Transmit/Receive Distance:
with included antennas: Indoor/Urban 1000ft, Line-of-site 3 Miles
with optional Yagi antennas: Indoor/Urban 1600ft, Line-of-site 6 Miles
Transmitter/Receiver Code Matching: Factory set
Wire Connection: Terminal Blocks
Operating Temperature: -22 to 113 ºF (-30 to 45 ºC)
Enclosures: NEMA 4X, PCT Plastic

Switch Transmitter Specifications
RF Power Output: 250mW
RF Output Impedance: 50 Ohm nominal
RF Data Rate: 200 kbps
Operating Power 120V AC @ 3W max
Control Input Type: Dry-contact Switch

Solid State Relay (SSR) Receiver Specifications
Receive Sensitivity: -110 dBm
Operating Power: 120V AC @ 3W max

Control Output

Model: WPC900-XL-SSR8A

Output Terminal:
Load voltage range: 100 to 240 VAC (50/60Hz).
Max. on-state average current: 8 Amp.
Max. on-state current: 12 Amp (<10 seconds).
Non repetitive surge peak on-state current: 120 Amp (<20mS).
Max. on-state voltage drop: 1.5V.
Max. off-state current: <2mA / at 220VAC.
Off-state max. allow voltage: 400V.
Isolation: Phototriac.
Zero cross: Yes.
Load type: General purpose.

Regulatory Approvals
FCC(USA) - MCQ-XB900HP
IC (Canada) - 1846A-XB900HP

Available Models

Model No.	Description	Control Lines
WPC900-XL-SSR8A-1	Industrial 900 MHz Wireless 1-Line Remote Control Switch Transmitter with 8 Amp Solid State Relay	1
WPC900-XL-SSR8A-2	Industrial 900 MHz Wireless 2-Line Remote Control Switch Transmitter with two 8 Amp Solid State Relays	2
WPC900-XL-SSR8A-4	Industrial 900 MHz Wireless 4-Line Remote Control Switch Transmitter with four 8 Amp Solid State Relays	4

Long Distance Antenna Options

Model No.	Description
DRWC-900-LRANT	Optional 900 MHz Long-Range Directional Antenna (up to 6 Miles line-of-site)

Each Transmitter/Receiver Set includes standard antennas, 6ft. antenna extension cables and manual.
