Lighting Control / Contactor Panel with Standard Twist-lock Photocell Socket - 120V AC Operation
LCP-MB-120-2P-10A-CBLighting Control/Contactor Panel with Standard Twist-lock Photocell Socket
Series: LCP-MB-120
Features
- Painted Steel Enclosure For Outdoor or Indoor Use
- Works with Standard Twist-lock Photocell Sensors
- Pre-assembled, Pre-wired, Ready to Install
- Models with 10, 20 or 30 Amp Circuit Breakers
- Available with 2-Pole or 3-Pole Contactor
- 120V AC, 50/60 Hz Operation
- MOV Surge Protected Contactor
- Models Available with “On-Off-Auto” Switch
Applications
- Parking Lots & Security Lighting
- Business Signs
- Sporting Fields & Stadium Lighting
- Storage Yards
- Marinas & Boat Docks
Description

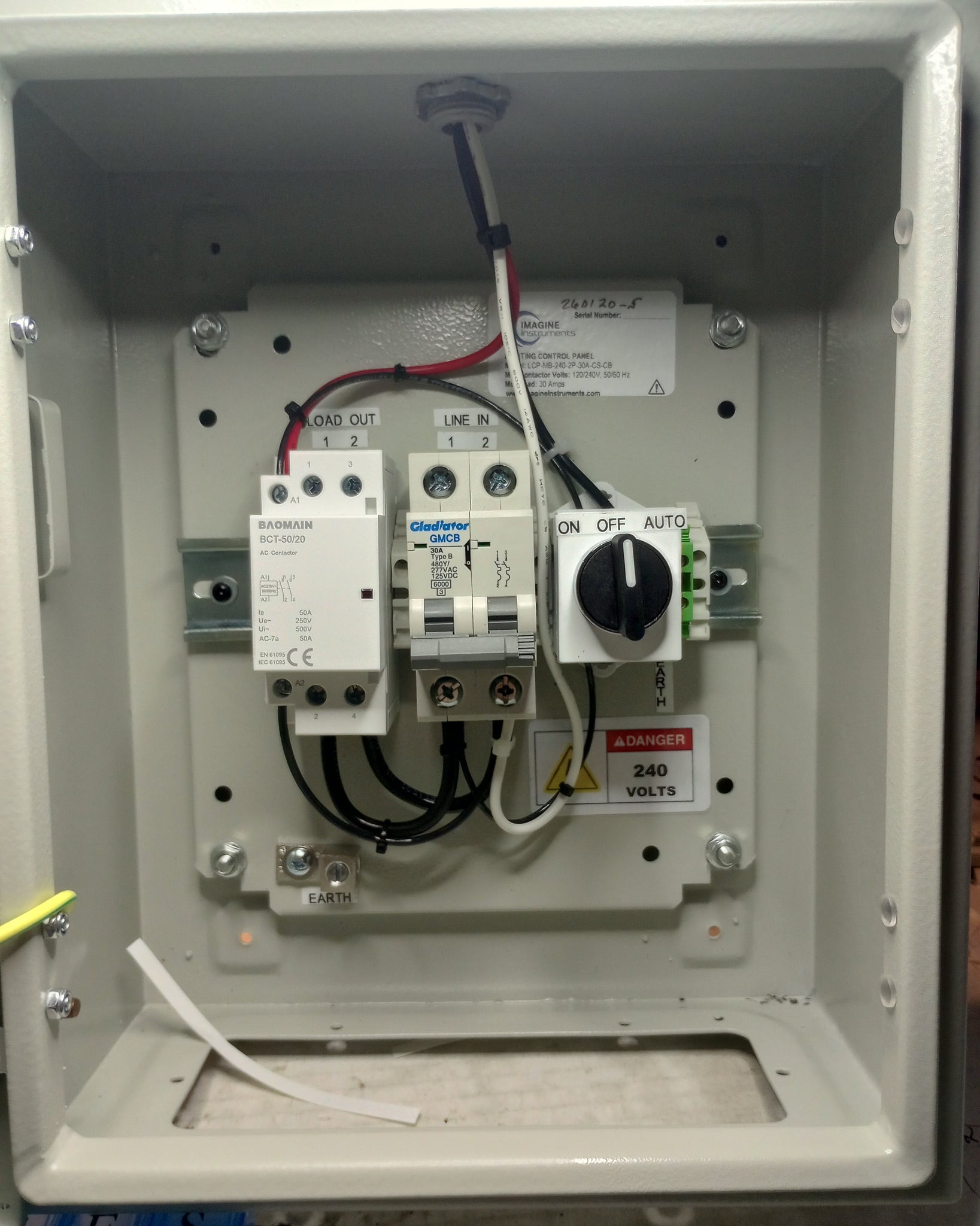

LCP-MB-120 Series Lighting Control Panels are pre-configured, pre-wired and ready to install. The series provides a fast, economical solution for controlling 120V AC lighting applications. Each pre-assembled unit features a NEMA 3R rated metal enclosure, optional din-rail mounted circuit breakers, “On-Off-Auto” Switch and a twist-lock socket for photocell sensors.
Specifications
Operating Voltage: 120V AC 50/60 HzControl Voltage: 120V AC, 50/60 Hz
Control Type: Photocell Sensor (Twist-lock Style)

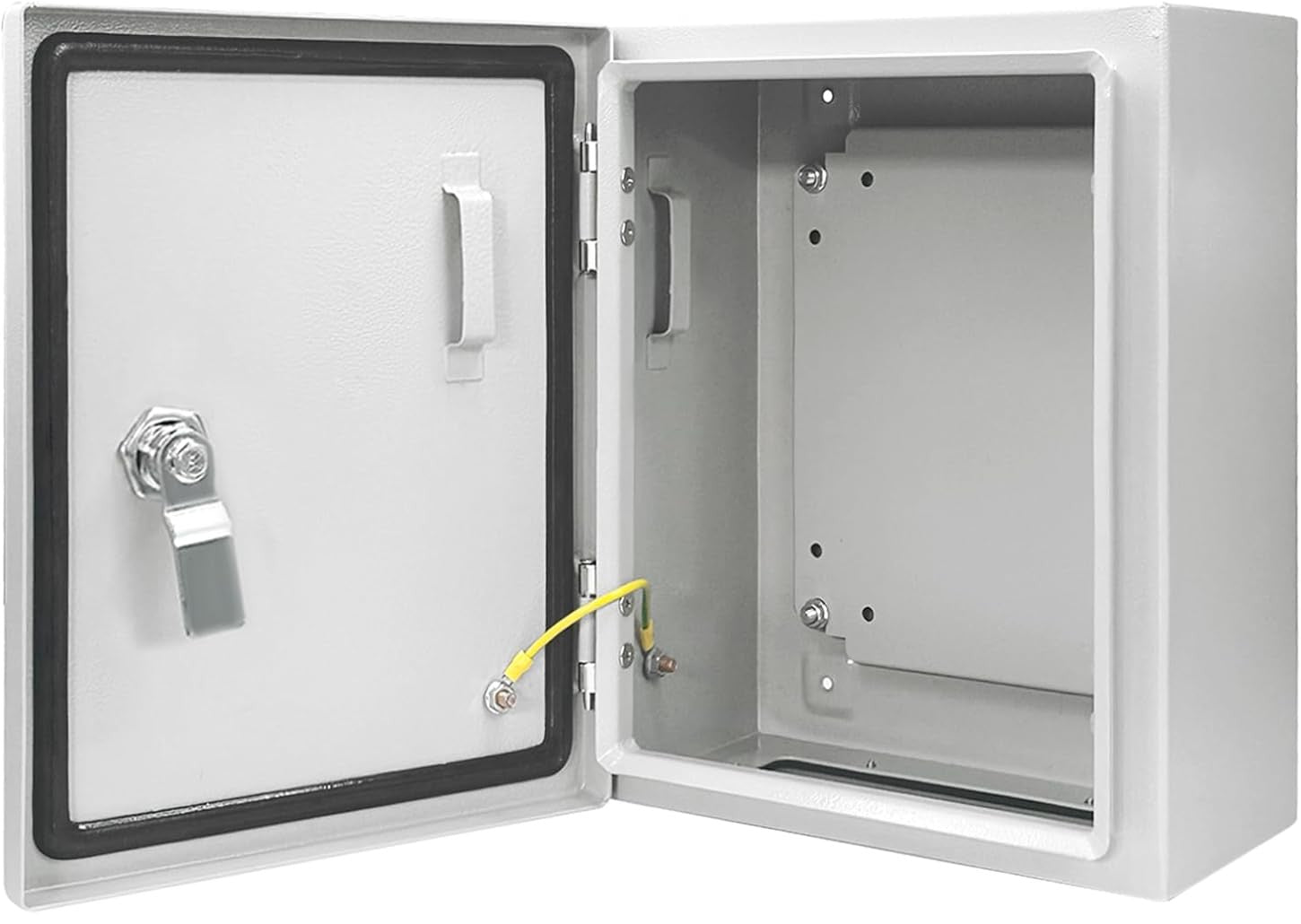

Enclosure: Painted Steel, NEMA 3R
Line Wire Connection: Terminal Blocks, 8-16 AWG
Load Wire Connection: Contactor, 8-16 AWG
Operating Temperature: -40 to180 ºF (-40 to 82 ºC)
Enclosure Dimension:
Models with Circuit Breakers - 12 x 10 x 4" (305 x 254 x 102mm)
Models without Circuit Breakers - 10 x 10 x 4" (254 x 254 x 102mm)
Note: Photocell Sensor is not included and must be ordered separately.
Available Models
|
Model Number |
Breaker Capacity |
Contactor Poles |
Circuit Breakers |
"On-Off-Auto" Switch |
|
LCP-MB-120-2P-10A |
10A |
2 |
No |
No |
|
LCP-MB-120-2P-10A-CB |
10A |
2 |
Yes |
No |
|
LCP-MB-120-2P-20A |
20A |
2 |
No |
No |
|
LCP-MB-120-2P-20A-CB |
20A |
2 |
Yes |
No |
|
LCP-MB-120-2P-30A |
30A |
2 |
No |
No |
|
LCP-MB-120-2P-30A-CB |
30A |
2 |
Yes |
No |
|
LCP-MB-120-3P-10A |
10A |
3 |
No |
No |
|
LCP-MB-120-3P-10A-CB |
10A |
3 |
Yes |
No |
|
LCP-MB-120-3P-20A |
20A |
3 |
No |
No |
|
LCP-MB-120-3P-20A-CB |
20A |
3 |
Yes |
No |
|
LCP-MB-120-2P-30A |
30A |
3 |
No |
No |
|
LCP-MB-120-2P-30A-CB |
30A |
3 |
Yes |
No |
|
LCP-MB-120-2P-10A-CS |
10A |
2 |
No |
Yes |
|
LCP-MB-120-2P-10A-CS-CB |
10A |
2 |
Yes |
Yes |
|
LCP-MB-120-2P-20A-CS |
20A |
2 |
N/A |
Yes |
|
LCP-MB-120-2P-20A-CS-CB |
20A |
2 |
Yes |
Yes |
|
LCP-MB-120-2P-30A-CS |
30A |
2 |
No |
Yes |
|
LCP-MB-120-2P-30A-CS-CB |
30A |
2 |
Yes |
Yes |
|
LCP-MB-120-3P-10A-CS |
10A |
3 |
N/A |
Yes |
|
LCP-MB-120-3P-10A-CS-CB |
10A |
3 |
Yes |
Yes |
|
LCP-MB-120-3P-20A-CS |
20A |
3 |
No |
Yes |
|
LCP-MB-120-3P-20A-CS-CB |
20A |
3 |
Yes |
Yes |
|
LCP-MB-120-3P-30A-CS |
30A |
3 |
No |
Yes |
|
LCP-MB-120-3P-30A-CS-CB |
30A |
3 |
Yes |
Yes |
